Socket Revit Families v.4

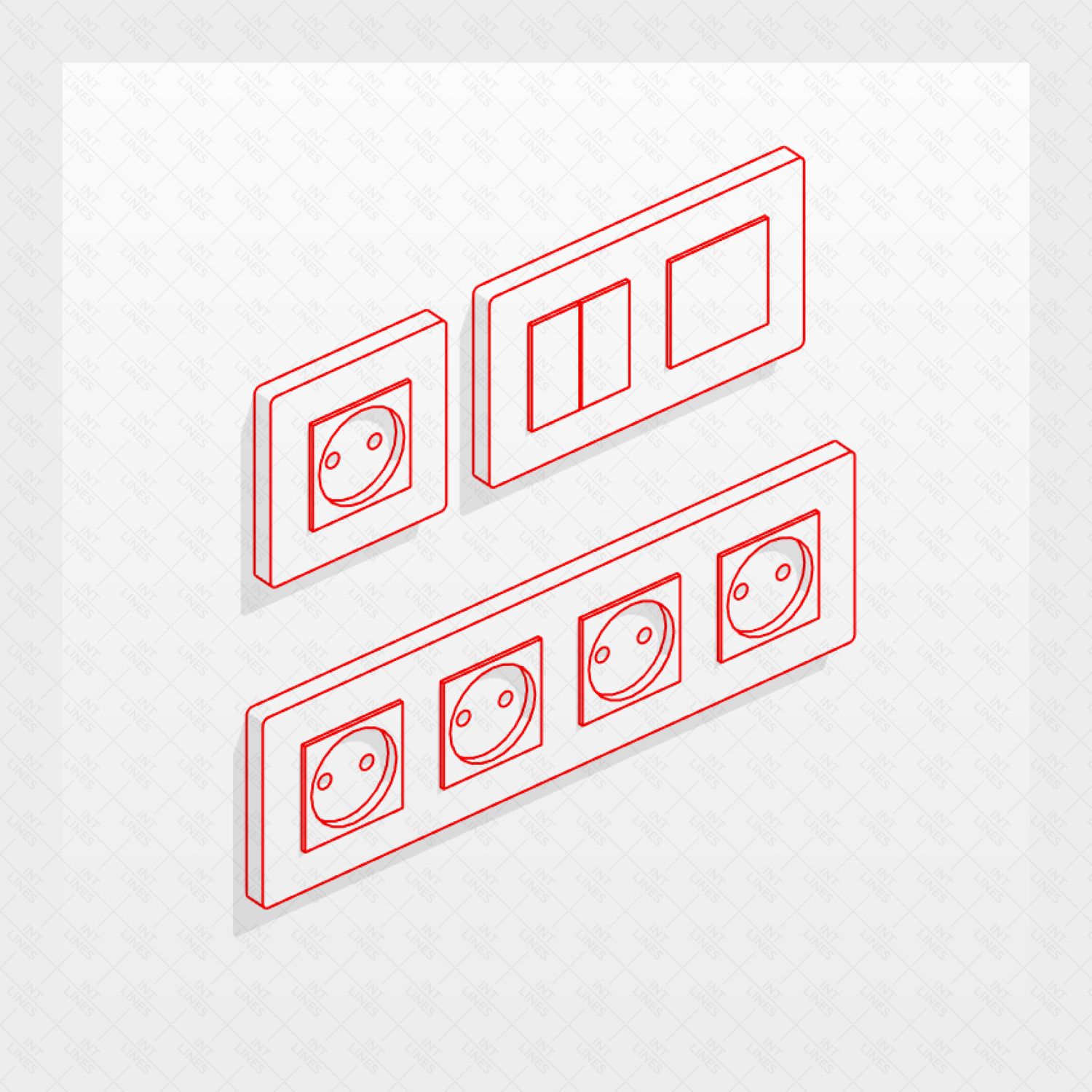

Parametric families of sockets and switches for Autodesk Revit. Available in two types of symbolic representations: schematic and realistic.

• Revit version: 2019
• Available languages: RU
• Number of families: 3
• Number of mechanisms in the family: 57
• Category: Electrical fixtures

Parameters: Mechanism dimensions, Frame size, Mechanism representation dimensions on plan, Mechanism representation dimensions on elevation, Placement height, Number of mechanisms, Mechanism type, Offset of representation from base on plan

---
