Door Revit Families

Number of Families: 32
Revit Version: 2019
Category: Doors

Overview

Parametric door and opening families designed for interior projects in Revit. They almost entirely fulfill an interior designer's need for other door families.

A unique system for finishing reveals and the ability to customize additional glazing around the door make this family set exceptional.

All families are structured so they can be placed on installation plans, displaying as openings. On plans where you need to show the door swing and frame, you can select a different display type.

Key Features

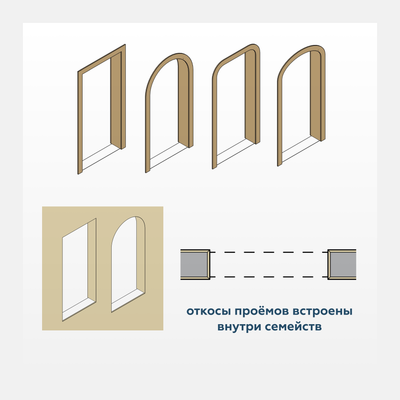

1. Customizable reveal finishing adjustable separately for interior and exterior. The finishing is categorized under walls, and its display can be overridden through Visibility/Graphics filters. If necessary, the finishing can be disabled.
2. Multiple display options at three detail levels:
   • Coarse Detail Level — only the opening for installation plans.
   • Medium Detail Level — symbolic representations suitable for large-scale projects.
   • Fine Detail Level — full detailing with handles.

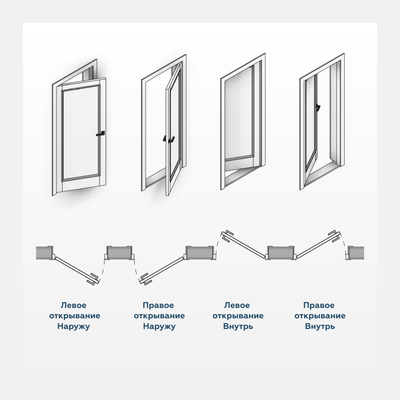

3. Adjustable door swing in 3D views, independent of the door swing on plan views.

The Set Includes the Following Families

• Openings
  • Holes
  • Openings
  • Portals

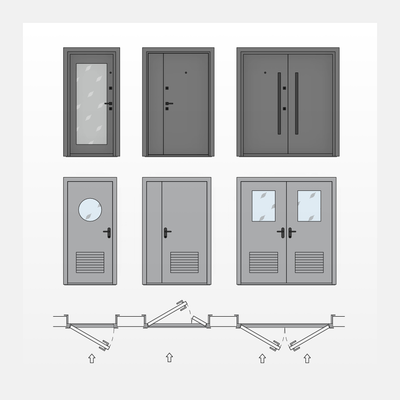

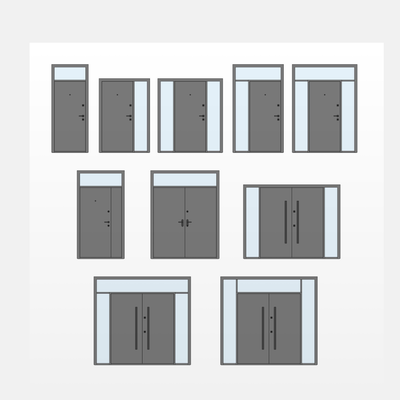

• Entrance Doors
• Technical Doors
• Interior Doors
  • Hinged
  • Concealed

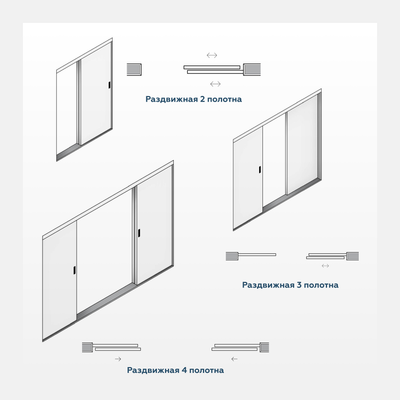

  • Sliding

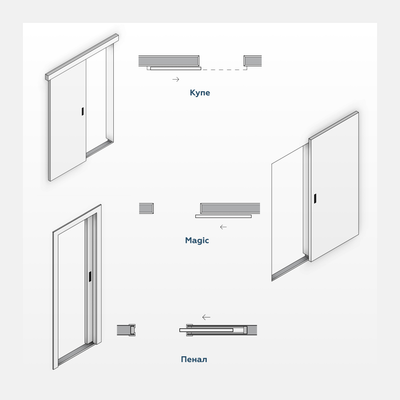

  • Pocket
  • Barn
  • Magic Sliding
  • Bi-Fold
  • Bi-Fold Compact
  • Rotary
  • Pivot

Parameters

• Dimensions
• Customizable door panel types
• Threshold presence
• Interior reveal finishing
• Exterior reveal finishing
• Interior trim visibility
• Exterior trim visibility
• Trim width
• Hardware
• Customizable glazing

Instruction

Instruction Link
